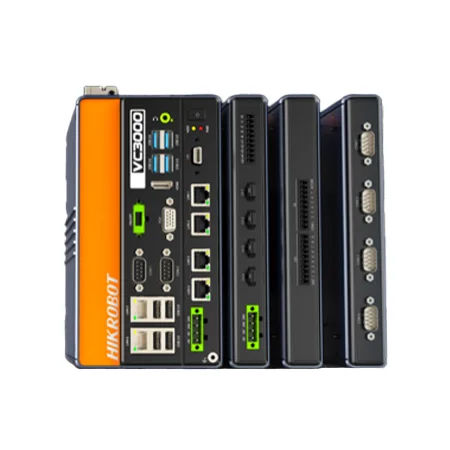

HIKROBOT VC3000 series is a flexible modular IPC for visual inspection.

  • Intel G9400 – i7-8700 CPU
  • 8-16GB Memory
  • Up to three expansion modules
  • Supports multiple opto-isolated inputs and outputs

Please select all options below to view datasheet


Contact Sales

For pricing and more details, get in touch with one of our friendly machine vision experts.

HIKROBOT VC3000 series vision controller is a new generation of industrial PC for visual inspection.

High performance, low cost and robust, the VC3000 main module is extremely streamlined in size without sacrificing functions. The modular design allows you to connect up three expansion modules: extended light source and IO.

The VC3000 vision controller series consists of 5 models and a range of CPU, GPU, SSD, HDD and Memory options. The system design makes for flexible installations with 3 different methods to meet complex space constraints.

External Interface (base model):

  • HDMI x1, VGA x1
  • Opto-isolated input x3, opto-isolated output x3
  • GigE x6
  • USB2.0 x4, USB3.0 x4, built-in USB2.0 x1
  • RS-232 x2
